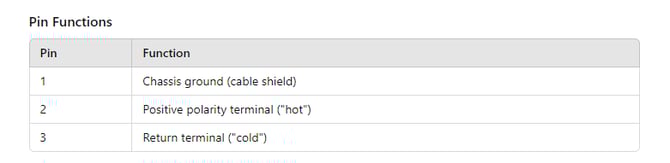

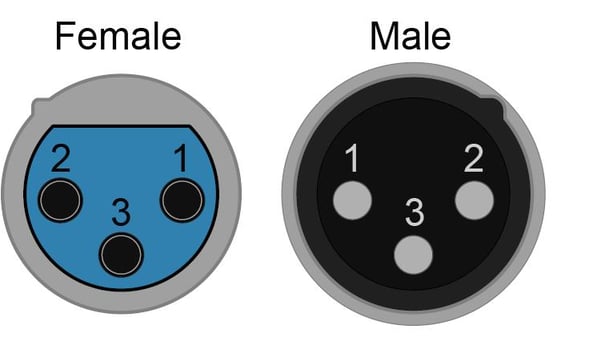

      XLR connector pinout and information

      This information provides a detailed overview of the XLR connector pinout and its various configurations and uses, particularly in professional audio environments.

      Additional Information

      • Also Known As: Cannon Connector (named after the inventor).
      • Configurations: Available in 3, 4, 5 pin, and mini 3 M/F pin configurations.
      • Usage: The most common connector for professional microphones and audio equipment.
      • Pin Reversal: Some equipment reverses pin 2 (- cold) and pin 3 (+ hot).

      Unbalanced Audio Connectors

      • Types: RCA, ¼” 2 conductor, 3.5/2.5 mm 2 conductor.
      • Description:
        • Traditional unbalanced cables use two lines to transmit the audio signal: a hot line (which carries the signal) and a shield line.
        • Suitable for short cables (where noise is less of a problem) and semi-professional applications.



      Initial submission Date: June 24, 2024
      Article authored by: Phil Benati
