      Speco Access Control Mobile App Set Up

      The step-by-step setup for getting an Access Control panel linked to the Speco Access App

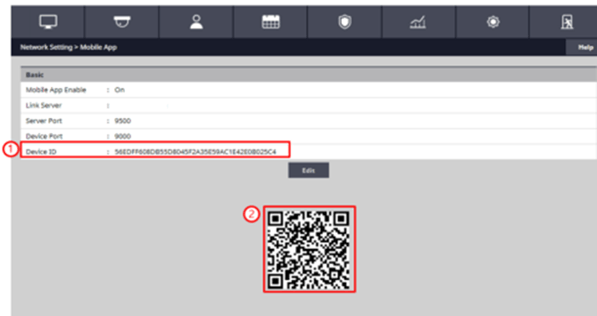

      Step 1: Access Control Panel Setup

      1. Go to Settings > Network Settings > Link
      2. Click Edit and check the box Mobile App Enable
      3. Keep this open, the QR Code/Device ID will be used in later steps

      Step 2: App Site Setup

      • Download and open the mobile app on your phone from Google Play and Apple App Store

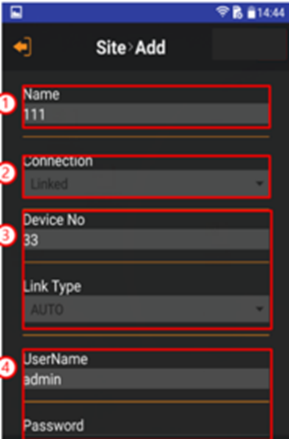

      • Launch the app and Click the + key next to add a Site



      1. Enter Site Name – Name of the System you are accessing.

                  - Note: You can have multiple sites managed from one app.

      2. Select the method to connect to the device. There are two ways to connect:

                   - Address Method OR Linked Method. The App will default to Linked

      3. You will leave the Device number and linked type blank as it will auto-fill and/or after you scan the QR code will provide the device number.

      4. Enter your Username and Password.

      •  Your Username and Password are the identical username and Password used to log into the access system. Each App user should have their own individual username and password. This will allow for user information to be tracked via the audit reports.
      • Proceed to the next step - Note: Do not click the check box.


      Step 3: Linking App to System


      1. On the bottom of this page Click “Search Linked Site”

      • Linked Site > Filter Note: You only need one piece of data – Device ID (QR Code) or MAC address
        • Option 1: Enter the ID of the device to be searched. The device ID can be input easily by using the QR code. Click the QR Code Symbol and log into the access system – Mobile App Set up page – Allow the camera access to the App and present to the QR code. This will auto enter your Device ID

        • Option 2: Enter the MAC address of the device to be searched.
          • Click the check box to enter.

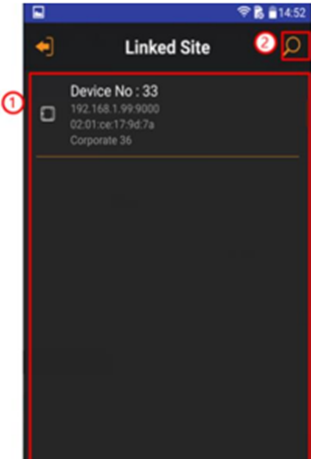

      Step 4: Linked Site

      1. Display device list.
      2. Search your Linked Site.
      3. Click on the Device No: text and select, the screen is closed and the number of the selected device is automatically entered on the Site Add screen. If not, enter the device number to the site page

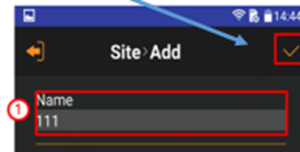

      Step 5: Site Add Check Box

      1. You are now on the Site Add page.
      2. To apply information you must click the Save box

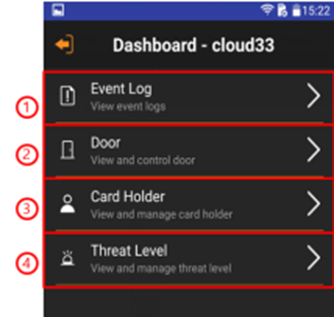

      Now you can use the App to manage your system via the Dashboard

      1. Displays Event Log information.
      2. Display and control door information.
      3. Display Card Holder information.
      4. View and manage Threat Level information.



      Curtis Armstrong 10/24/2024
