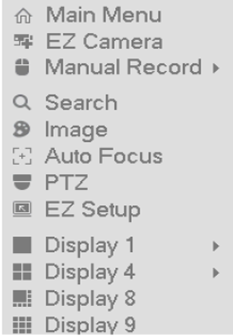

Step 1
Right click to get the menu up.

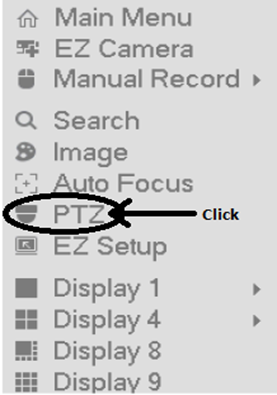

Step 2
Left click on the PTZ button.
Step 3
Login in box will appear, login win with your username and password the click “OK’

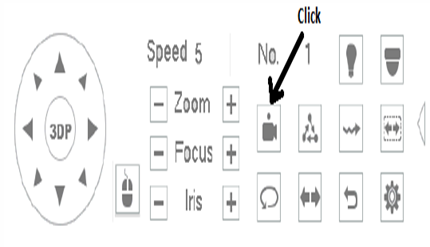

Step 4
Left click on the right arrow to bring up more option.
Step 5
Left click on AUX config(settings).

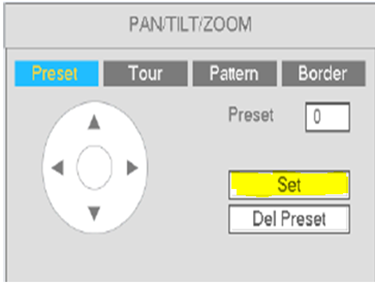

Step 6
Set the camera presets by clink on the number in the “Preset box” (highlighted in yellow). A small number keyboard will come up, click on desired number for that preset.
Use arrow in the Pan/Tilt/Zoom box to position camera then hit “SET”. Repeat procedure if more than one preset

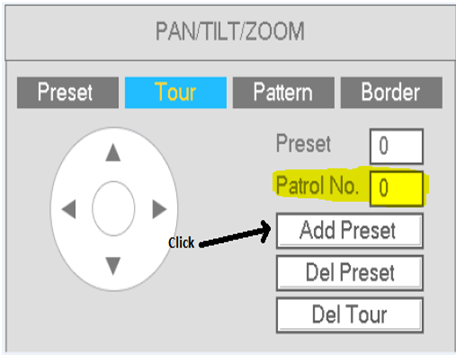

Step 7
- Right click back on the Aux Config and click the “Tour tab”. Change the Patrol Number to 1(for Tour 1) highlighted in yellow below, then change Preset to the first position you would like to go then press the add preset button, Repeat process for the next steps in the tour leaving the Patrol NO. on 1 for tour 1
Step 8
Make sure No. is set to 1, Left click the Tour button (shown below) and tour will start in about 2 -3 seconds.
Initial Publish Date: May 10th, 2024
Published by: Tim O'Brien, Lead Technician
