PLEASE NOTE : A physical, wired Ethernet connection is required first before setting up a Wi-Fi connection. Only 2.4GHz Wi-Fi is supported.

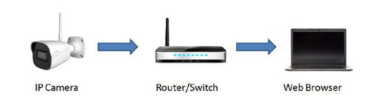

- Connect the camera to a wired ethernet connection.
- Once an ethernet connection has been established, run SecureGuard® IP Scanner or Speco Blue Scanner and locate the O4VBW2.
- Once identified, double-click on the camera to automatically open a web browser to the camera's login page.
- Insert the Username and Password of the camera and select Login.

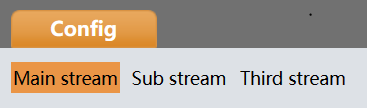

- Once logged in, select Config in the top-left corner of the screen.

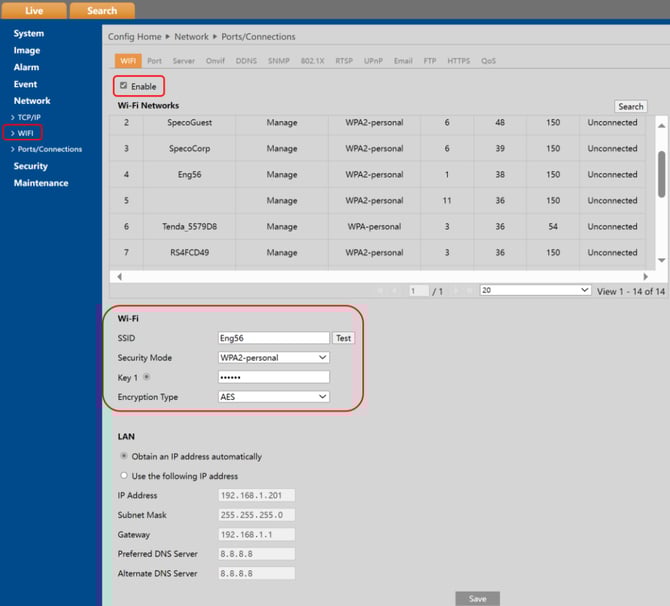

- At the left-side menu, Select Network and then WiFi.
- Select Enable at the top of the page.
- Select the network the camera needs to be attached to with the Wi-Fi Networks list.
- Insert the Wi-Fi Password in the Key 1 option below.
- Select Obtain an IP address automatically to give the camera an IP address that works with the Wi-Fi network.
- Select the Test button to confirm a valid connection.
- Select Save at the bottom once everything is setup.
- Disconnect the network cable from the camera and power it with 12 Volts.
- Run the IP Address again and identify the camera
