      How to connect a SPIPH9AM IP speaker to a Blue series IP camera, enabling audio transmission

      By using the SPIPH9AM's audio-out to a 3.5mm male to RCA male cable from the camera to the speaker, you'll be able to transmit audio



      Step 1:

      • Make sure to use a 3.5mm male to RCA male cable shown below
      • Connect from the camera 3.5mm Audio out port to the speaker RCA audio in port.




      Step 2:

      Step 3:

      • Once logged into the speaker
        • Select ➊ "Alarm"
        •  Select ➋ "Alarm In" choose a file to play.
        • Select the Cycle mode, then save

      Step 4:

      • Login to the Speco Blue NVR directly from the front panel, go to "Settings"
      image-png-Apr-11-2024-01-50-51-6347-PM
      • Then "AI / Event"
        image-png-Apr-22-2024-01-41-43-9516-PM

      Step 5:

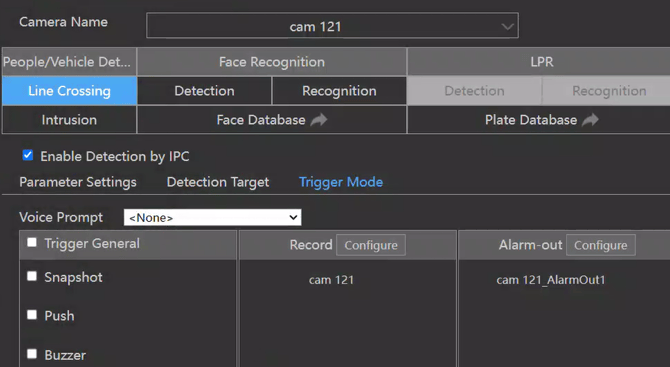

      • Choose line crossing.
        • On the "Line Crossing" section please make sure it is set like this below.

      Step 6:

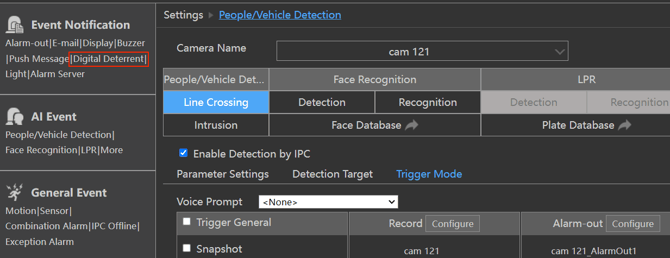

      • Go to " Digital Deterrent"

      Step 7:

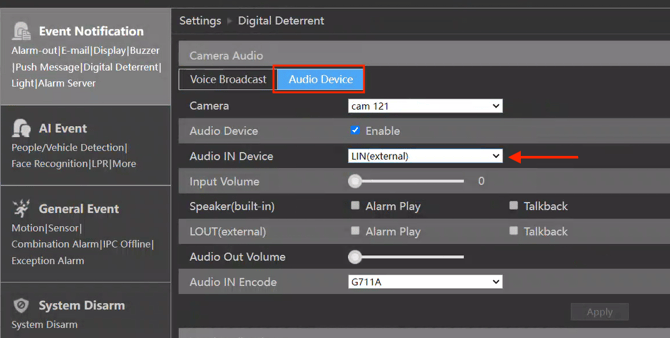

      • Got to  "Audio Device"  then select "LIN"

      Step 8:

      • Click Apply

      Initial Publish Date: April 17th, 2024

      Published by: Andrew Persoff, Technical Support Manager\
