Locally at the Recorder:

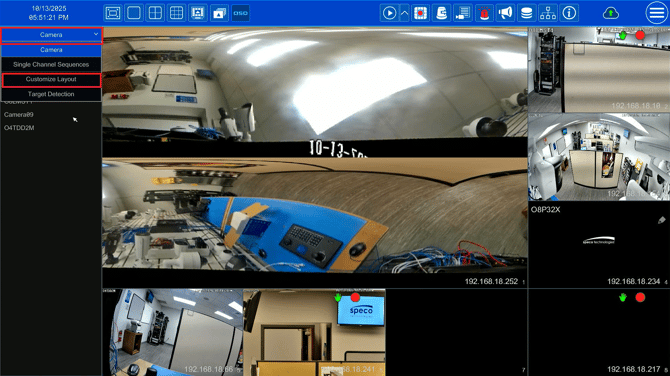

- From the live view screen navigate to the side text bar and click on the displayed text. This will bring up a dropdown to select from.
- Select "Customize Layout"

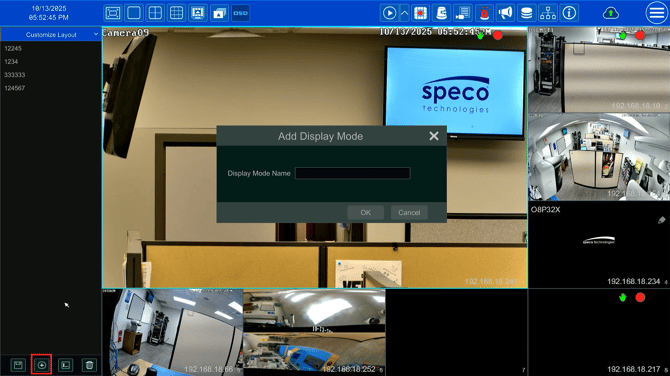

- Press the Add button,
- Name the layout and then press OK.
- Configure the layout by clicking and dragging cameras to their desired position.

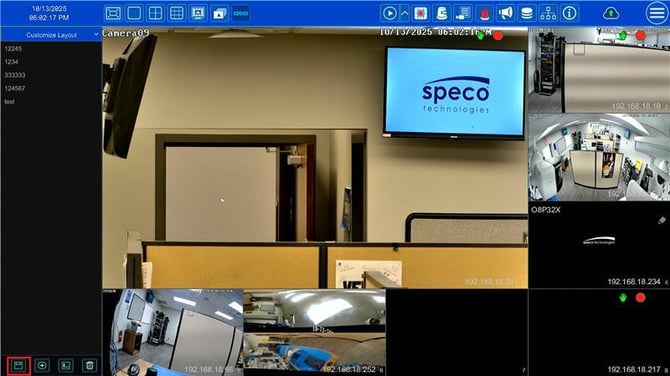

- Once finished press the Save button.
For the Web Interface:

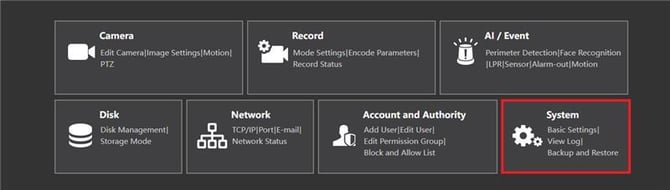

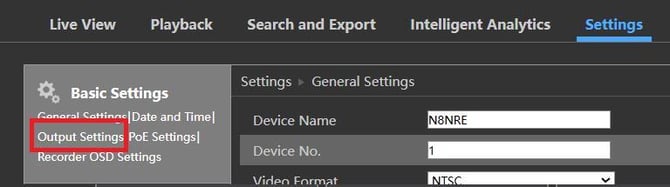

- Navigate to Settings > System > Output Settings

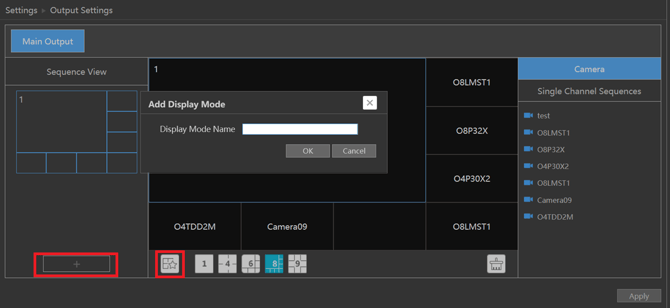

- Click the "+" icon to create a new layout
- Or the existing layout and customize by dragging cameras from the sidebar.
- Once finished click the Save icon and set a name for the preset.

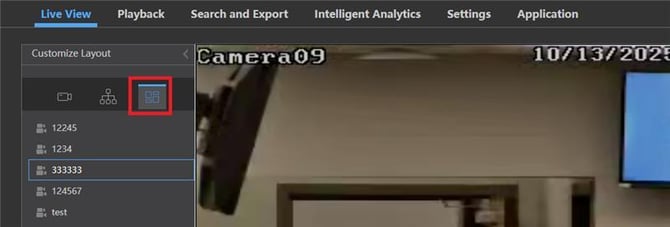

- To use the new preset, navigate to the live view and click on the Customize Layout icon.
- From here, the newly created layout can be selected.
Initial submission Date: October 10, 2025
Article authored by: Michael Pagano, Technical Support Agent - Tier 1
