How to Enable Spot Monitoring for a Speco Blue Hybrid Recorder

This article will show you how to enable the option for a secondary output with the spot monitoring option.

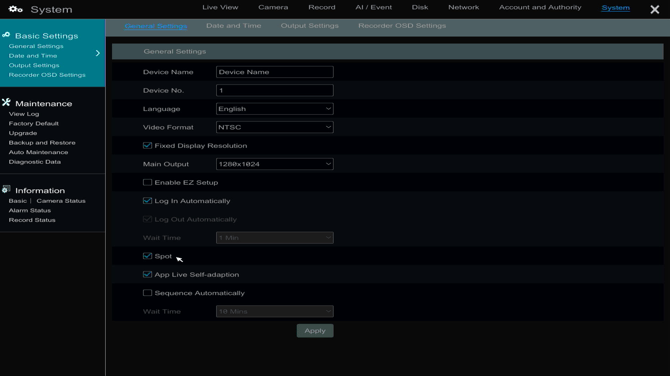

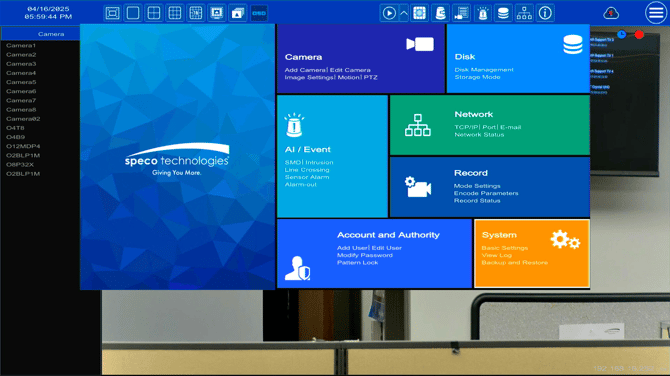

  • Go to Settings > System

  • Towards the middle of the page, click the check box for Spot



  • With the Spot option enabled a sequence can be configured
    • Go to Output Settings > Output2

  • When the Spot option is disabled, the CVBS output on the recorder will mirror the HDMI and VGA outputs, with standard low resolution

Initial submission Date: April 16, 2025

Article authored by: Michael Pagano, Tier 1
