How to enable Digital Deterrent features from NR series recorder

Digital deterrent features can be configured from either the camera or the recorder.

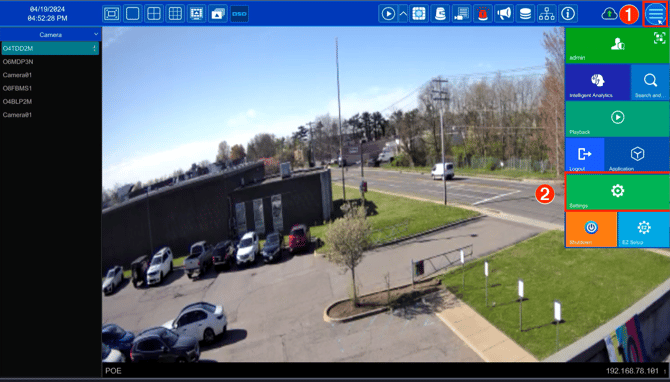

Step 1:

• ➊ Click on the  hamburger icon,
• ➋ Click on settings (gear icon)

Step 2:

• Choose the AI/Event Tab as shown below.

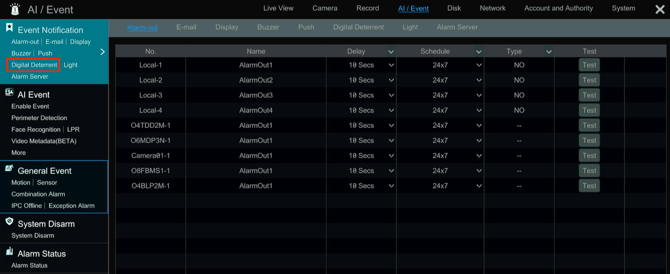

Step 3:

• Under Event Notification tab click on Digital Deterrent tab.

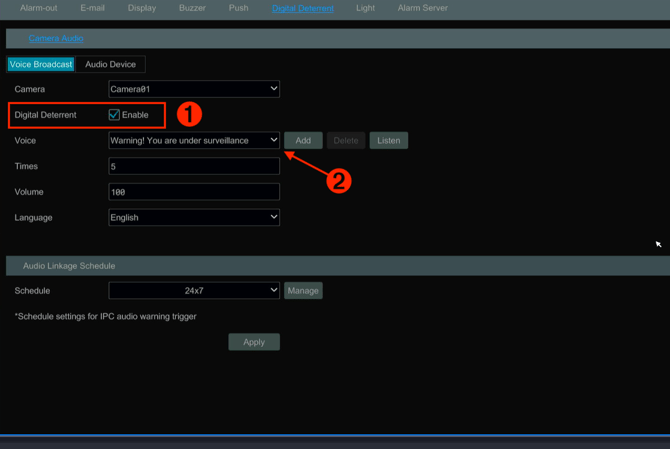

Step 4:

• ➊ Click enable for Digital Deterrent
• ➋ Select the voice option to play when an event is triggered

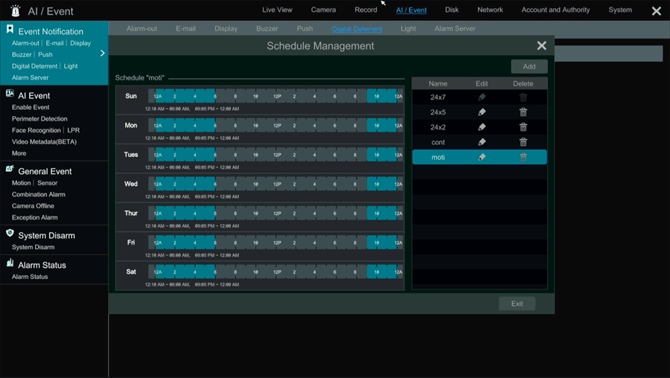

Step 5:

• ➊  Click on the Audio Device tab
• ➋ Ensure the microphone is enabled. This is where the schedule is set for audible alarm. <--- Please clarify!!!

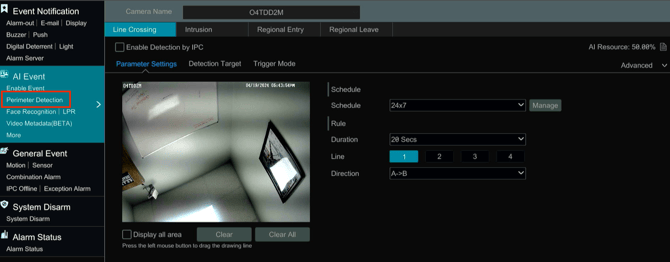

Step 6

• Under AI Event click on Perimeter Detection

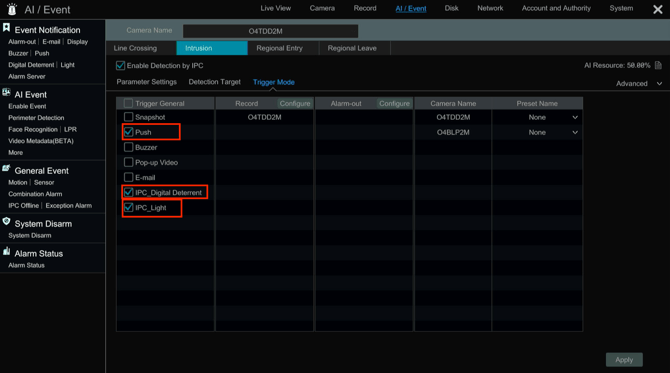

Step 7:

• Select AI event and click Perimeter Detection.
• Setup your analytic  (Line Crossing, intrusion).
• Click trigger mode and select  IPC_Digital Deterrent, and IPC_Light.

Step 8:

• Click Apply

Initial Publish Date: April 19h, 2024

Published by: Tim O'Brien, Technical Support Lead
