How to create a License Plate Group Database on a Speco Blue Recorder

This guide will go over the steps required to utilize the Intelligent Analytics feature of creating a License Plate Group Database on a Speco Blue Recorder.

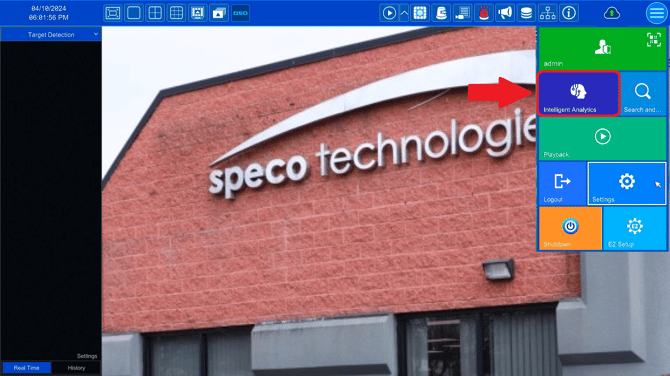

• From the live screen, select the Hamburger ☰ button in the top right corner and select Intelligent Analytics.

• The Intelligent Analytics menu will appear.

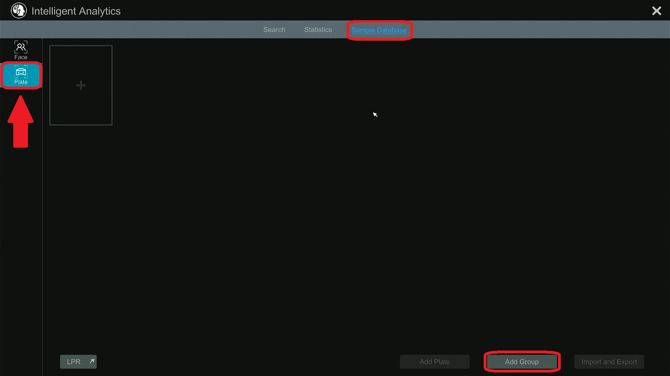

  • At the top of the page, select Sample Database.

    • Select Plate on the left side, and then select Add Group at the bottom.

• The Add Group menu will appear. Click the empty field and insert a name for the group of license plates. It can be named anything.

  • Select OK when done.

• The created group should now appear listed on the Sample Database screen.

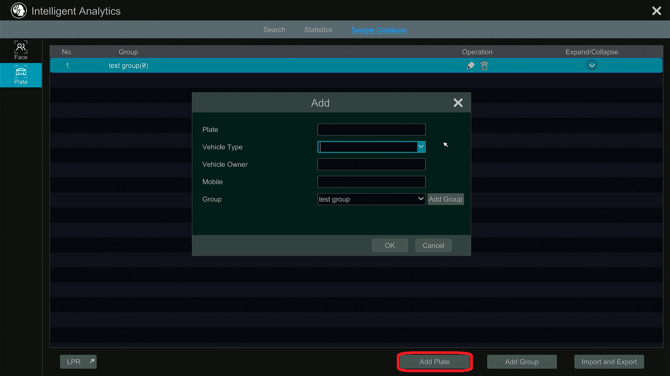

  • Select Add Plate at the bottom of the screen. A menu will appear.
    • The first option on the menu is Plate. Type in the license plate number that needs to be added to the database. This option is required for recognition.
      • Please use capital letters and do not use any spaces.
    • Vehicle Type is an added note to help the user identify what vehicle the license plate belongs to.
    • Vehicle Owner is an added note to help the user identify who the vehicle belongs to.
    • Mobile is an added note for the user.
    • Group allows the user to assign the license plate to a specific group if there are multiple groups established.

      • Vehicle Type, Vehicle Owner, and Mobile are not required for recognition to function.

        • Select OK once the plate information has been inserted.

A license plate group should now be established. To create more groups and/or license plates, please repeat the steps followed in the guide.

For a guide on how to set up and configure License Plate Detection & Recognition, CLICK HERE.

CLICK HERE to see a demo of License Plate Detection and Recognition in action.

Initial submission Date: June 25, 2024
Article authored by: Frank Bondietti
