How to Add a Speco IP Audio Speaker to Immix

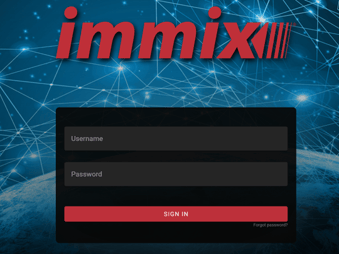

•  Log into Immix with sign-in credentials

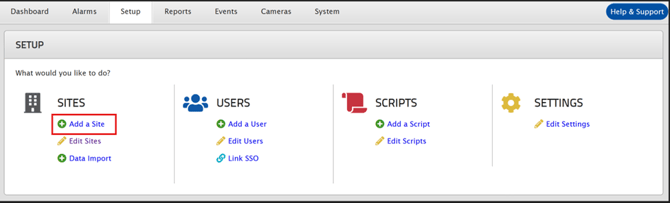

• Navigate to the “Setup” tab
  • Select “Add a Site”

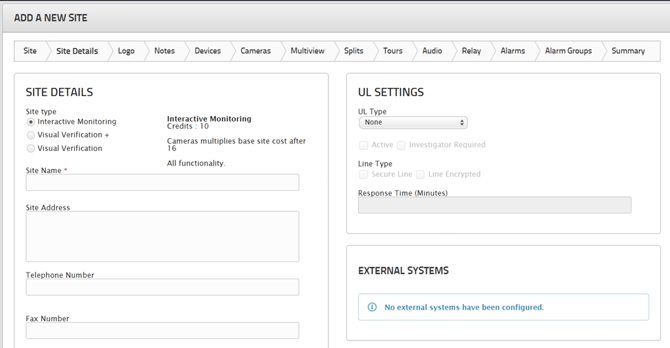

• Enter all of the necessary information on the “Add Site” page (only a site name is required to create a site)
  • Click the “Next” button at the bottom right-hand side of the screen.

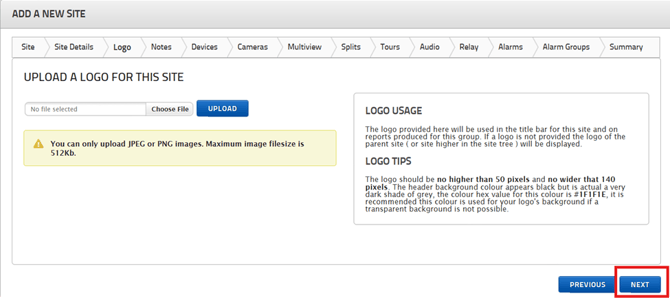

• Next, add a logo if desired
  • Click “Next” until you reach the Devices page
  • Select “Add a Device”






•  The device detail screen will appear.

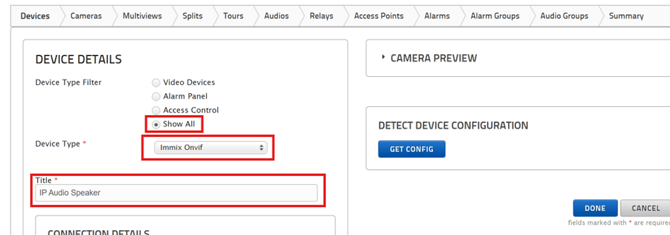

  • Click on “Show all” for Device Type Filter
  • Select “Immix Onvif” for the Device Type
  • Give the device a name under “Title”

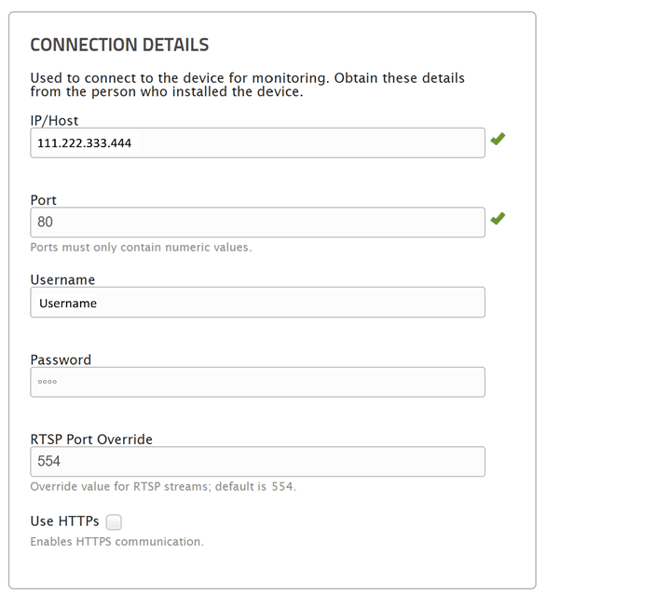

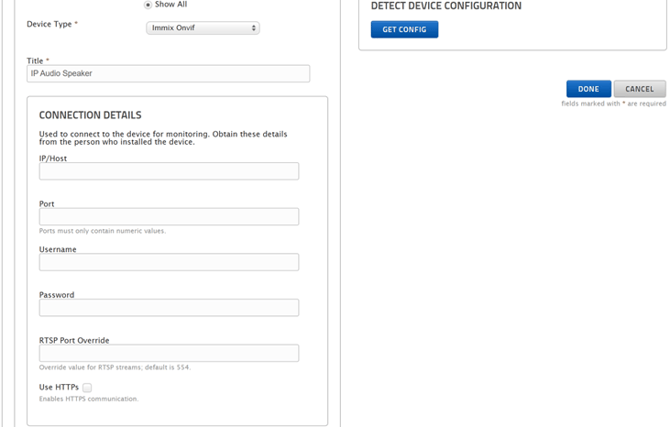

• Under the “Connection Details”, enter IP address of the device
  • The Port Number is typically 80
  • Username and password of the device
  • The RTSP port which is typically 554
  • If the information has been entered correctly, green check marks will appear on the right side of the text box under IP/Host and Port
  • Click on the “Get Config” button

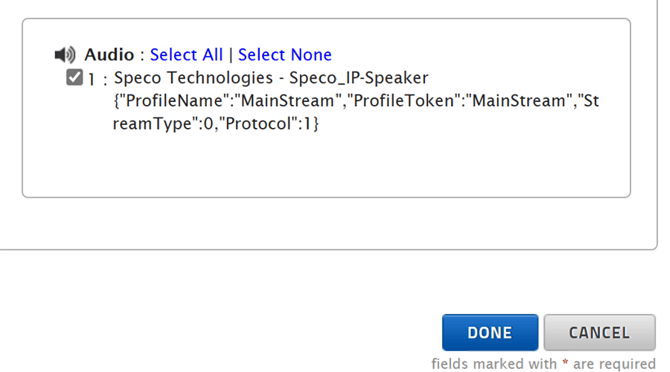

• The device will appear under the “Get Config” button
  • Make sure that there is a check mark in the box.
  • Click the “Done” button.




• The Speco IP Audio Speaker has now successfully been integrated with Immix.



Testing the IP Speaker

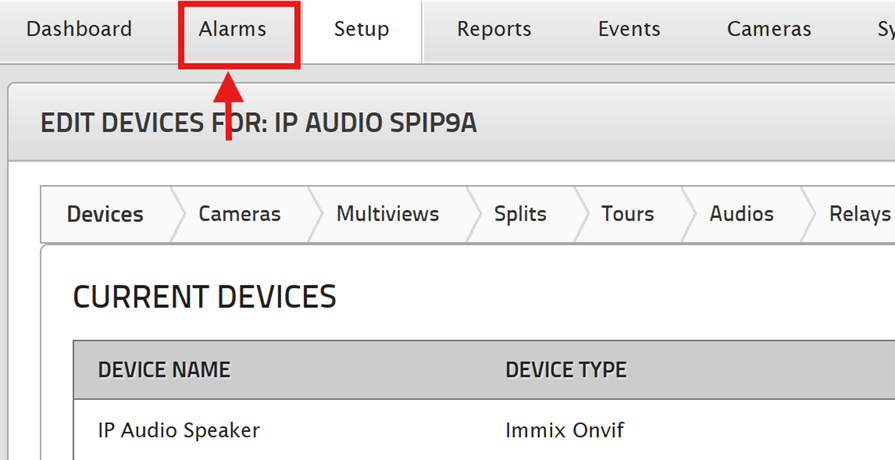

• The speaker will be added to the Current Device page.
  • To test the speaker, click on the “Alarms” tab.

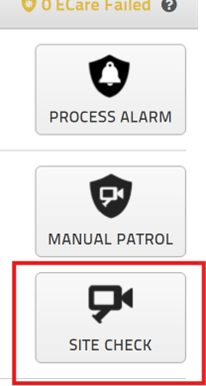

• Then click the “Site Check” button on the right hand side and select the site that the IP speaker has been added to.

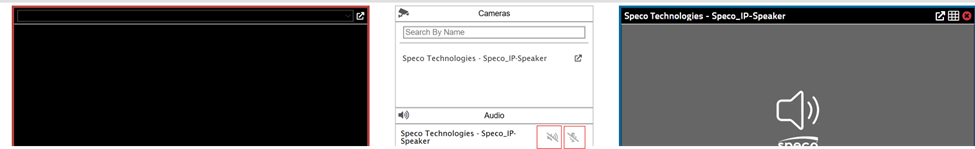

• The speaker will be listed under Audio.
  • Selecting the sound icon will pick up any sound detect by the speaker’s microphone.
  • Press and hold the microphone button to enable communication out through the speaker



Initial submission Date: June 16, 2025

Article authored by: Daniel Alles, Product Manager

Article Transcribed by: Christopher Cataldo, Technical Support Lead
